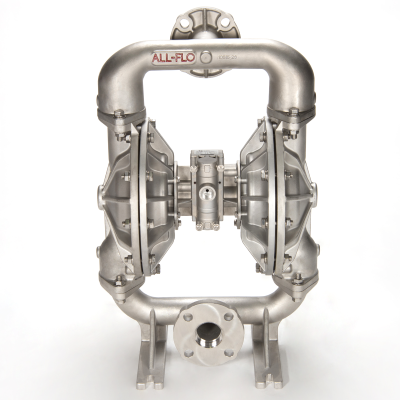

All-Flo A200-CA3-VV3V-B70 Bolted Air-Operated Double-Diaphragm Pump, 2 inch Combination ANSI/DIN Flange & NPT, Stainless Steel body, FKM Diaphragm Standard Configuration
Item #A200-CA3-VV3V-B70
- Max Flow = 190 gpm
- Max Suction Lift = 31.7 ft-H20 Wet
- Max Suction Lift = 24.4 ft-H20 Dry
- Max Pressure 120 psi
- Max Diameter Solids = 1/4"
- Porting Location: Suction Center Front / Discharge Center Rear
- Stainless Steel Hardware, Standard Muffler
- Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo A200-CA3-VV3V-B70 Is a 2 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Stainless Steel housing, a Aluminum air section and FKM diaphragms. the port locations are Suction Center Front / Discharge Center Rear and it has a Standard Configuration
