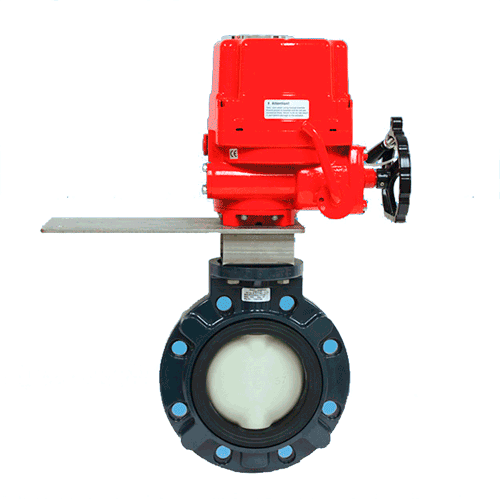

Asahi/America Series 10 Electric Actuator for 12" Butterfly Valve with Aluminum Housing, 120 VAC
Item #2090120
- Motor: Reversing, squirrel cage induction motor, 120 VAC 50/60 Hz, single phase
- Overload protection: Integral thermal overload protection for motor windings with automatic reset
- Gear train: Permanently lubricated
- Conduit: Two 3/4" FNPT conduit entries to eliminate cross feed between control and power signals
- Declutchable manual override: Lockable declutching lever with handwheel
- Limit switches: Standard end of travel limit switches can be used for light indication (not to be use with PLC for position confirmation)
- Auxiliary (Additional) limit switches: Each electric actuator is provided as a standard with 2-SPDT auxiliary limit switches
- Torque Switches: 2-SPDT Torque switches
- Mechanical Stops: Two +/- 10% mechanical travel stops
- Enclosure: Type 4X & 6
- AWWA C542: Conforms to AWWA C542
- Self-Locking: Self-locking worm gear design eliminates the need for a mechanical brake
- Space Heater: A space heater is provided as standard equipment
- Output torque: Series 10 Electric Actuators have an output torque range from 1320 in/lbs to 10,440 in/lbs
- Corrosion resistant mounting: Mounting is with stainless steel bracket, stainless steel coupling, and stainless steel hardware
The Series 10 electric actuator is used to actuate Asahi's larger valves, including butterfly valves up to 24".Ideal Applications Include: Locations with no air supply, colder temperatures, larger valves, limited submergence applications
