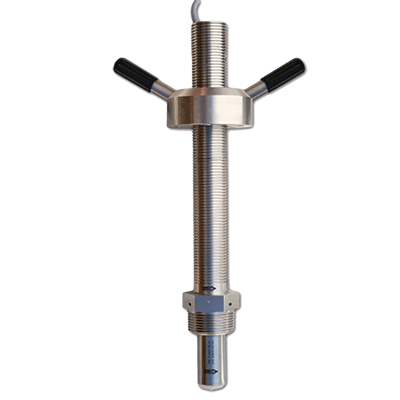

The Signet 2552 Metal Magmeter features all-stainless steel construction. The PVDF nosepiece and FPM O-rings are the only other wetted materials. The 2552 installs quickly into standard ISO 7-R 1¼ or ISO 7-R 1½ (1¼ in. to 1½ in. NPT) pipe outlets, and is adjustable to fit pipes from DN50 to DN2550 (2 to 102 in.). Two sensor lengths allow maximum flexibility to accommodate a variety of hardware configurations, including ball valves for hot-tap installations.
When equipped with the frequency output, the 2552 is compatible with any Signet flow instrument, while the Digital (S3L) output enables multi-channel compatibility with the Signet 8900 Multi-Parameter Flow Controller. Select the blind 4 to 20 mA current output to interface directly with dataloggers, PLCs or telemetry systems. Key features include empty pipe detection, LED-assisted troubleshooting, and bi-directional span capability (in 4 to 20 mA models).
The Signet 3-0250 USB to Digital (S3L) Configuration/Diagnostic Tool is available to customize every performance feature in the 2552 so that it can be adapted to the user's application requirements.
Typical applications:
- Municipal Water Distribution
- Process and Coolant Flow
- Chemical Processing
- Wastewater
- Mining Applications
- Water Process Flow
- HVAC
Compatible Products:
- 8900 Multi-Parameter Controller
- 9900 Transmitter
- 9900-1BC Batch Controller
- 8550 ProcessPro Flow Transmitter
