pH/ORP Sensors

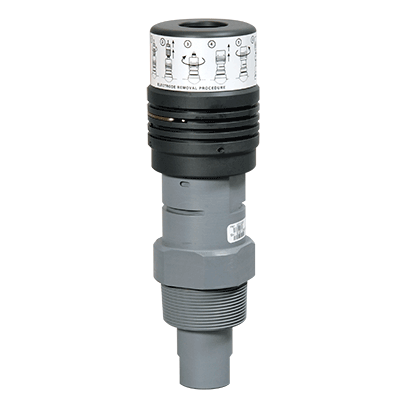

Series 3719 pH/ORP Wet Tap assembly, 1-1/2" NPT

Item #3-3719-11
  • Removes electrodes from pressurized systems for routine service or replacement
  • Automatic process isolation upon electrode retraction, no separate valve required
  • Space saving 1.57" short-stroke design
  • Sealed pneumatic dampening for smooth and safe operation
  • SafeLoc® Cam-activated automatic locking mechanism
  • Compatible with Twist-Lock and DryLoc® electrodes for use with 2720 and 2760 preamplifier or 2750 pH/ORP sensor
  • Large reference volume for long electrode life
  • Protects electrode sensing surface from breakage
  • pH electrode includes integrated temperature sensor
  • Suitable for mounting in any orientation
  • Low profile clamp-on saddle fittings for convenient installation in pipe sizes 2½-12"
The Signet 3719 pH/ORP Wet-Tap allows installation and removal of pH or ORP electrodes without the need for shutdown during electrode maintenance and calibration. Process isolation is achieved with a double O-ring seal on a unique and compact retraction assembly; no separate valve is required. The wet-tap unit can be mounted at any angle and can be used with the Signet 2756-WT/WTP and 2757 WT/WTP DryLoc Wet-Tap electrode.

Additional Documents:

Manufacturer+GF+ Signet
CategoryInstrumentation
Size1-1/2"
