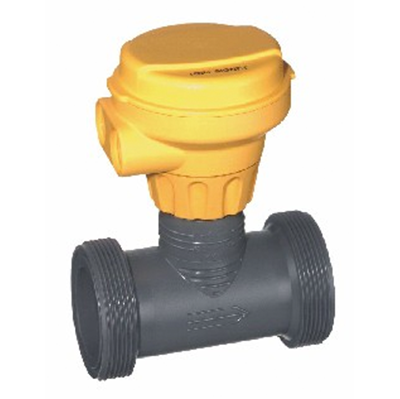

Vortex Flow Sensor, 4 to 20 mA, 1" NPT, Sch80 PVC, EPDM
Item #3-7001-53
- Six sizes in the range 1/2 to 2 in.
- No moving parts or machined surfaces
- Injection-molded plastic construction
- Excellent surface-finish quality
- +/- 1% of reading accuracy
- End connector options include BCF/IR, Socket Fusion or Solvent Cement Socket
- All HP or high-purity versions are lot-traceable, molded in a dedicated high purity environment, precleaned for ultrapure service, and double-bagged in PA6/PE packaging
- Vibration-noise protection
- Standard sensor output: Frequency or 4 to 20 mA
- Integral transmitters with local displays and many additional features are available as accessories, or select from a wider variety of panel-mount flow instrumentation
- Reverse polarity protected
Vortex Flow Sensors provide extremely accurate and reliable flow measurement with no moving parts. PVC, PP, PVDF & SYGEF® HP-PVDF material choices accommodate applications ranging from chemical delivery to deionized water distribution. The sensors are injection-molded to achieve a smooth surface finish for cleanliness and better chemical compatibility, that also drastically reduces manufacturing inconsistencies and in-service particulation associated with machined surfaces. A variety of end connector options simplify installation and allow unparalleled configuration versatility. The sensors feature either frequency output or fixed 4 to 20 mA current output, and can be used with the comprehensive offering of +GF+ SIGNET flow instrumentation to achieve enhanced system functionality
