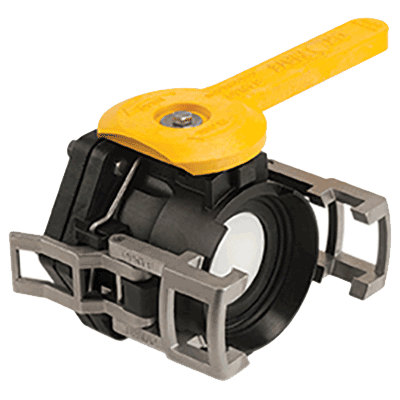

Banjo DM300DFP 3" Dry-Mate® DM300 Series Black Glass-Filled Polypropylene Dry Disconnect Coupling, Dry-Mate Female x FPT, FKM Seal
Item #DM300DFP
- Minimal fluid spillage
- Economical and easy to use
- Reduces risk of exposure to fluids
- Wide range of chemical resistance
- Cannot be uncoupled when the handles are in the fully open position
- Maximum pressure of 225 psi at 70° F
Banjo Dry-Mate® DM300 Series Dry Disconnect Coupling Fittings help prevent spillage and reduce risk of exposure to harmful fluids. The easy to use ball valve design allows an unrestricted path for fluid flow. The handles interlock making it easy to identify which handle opens or closes first. Series DM300 is made from a glass reinforced polypropylene for strength and chemical resistance. The female DM300 series has a 316L stainless steel yoke that keeps the clamp arms in the locked position when the couplers are connected and the handle is in the fully open position. When properly installed and operated, the assembly will not accidentally separate while fluid is flowing preventing costly mishaps.
Additional Documents:
