Blue-White

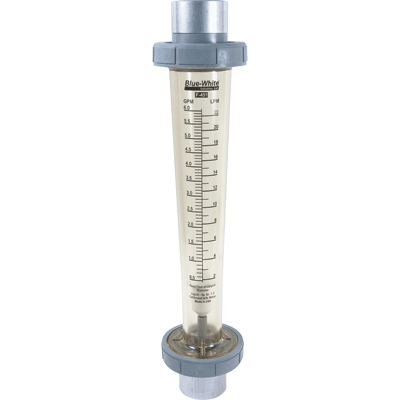

Blue-White Series F-451 Flowmeter, In-Line Mount, 4.0 to 40 GPM / 1 to 155 LPM, 1" Female NPT Polysulfone Adapter, 316 Stainless Steel Float, 316 Stainless Steel Guide Rod, Without Shield

Item #F-451004LHN
  • Polysulfone meter body resists high tempertaure and pressure
  • Available for liquid and air applications
  • Standard units with corrosion and wear-resistant internal parts of 316 SS or PTFE (depending on flow range) and 316 SS guide rods
  • K-series models with Hastelloy C-276 or PTFE floats (depending on flow range) and Hastelloy C-276 guide rods for highly corrosive environments
  • Permanent, dual-scale ranges printed directly on the meter
  • High-grade FKM O-ring seals; optional materials available
  • Not recommended for direct sunlight applications
Blue-White Series F-451 Flowmeters feature a direct read permenant scale and tough Polysulfone meter body that resists high temperatures and pressures. Series F-451 has either a 316 stainless steel, Hastelloy® C-276 or PTFE float, depending on calibration. All meters come with an FKM O-ring; EPDM option available.

Standard Series Features:


Adapter material: Polysulfone or PVC
Union nut material: Glass fiber reinforced nylon
Guide rod material: 316 stainless steel
Float material: Either PTFE or 316 Stainless Steel
Maximum fluid temperature: 212° F (100° C) @ 0 PSI for 1" Pipe and 130° F (54° C) @ 0 PSI for 1-1/2" Pipe

K-Series Features:


Adapter material: Polysulfone or PVC
Union nut material: Glass fiber reinforced nylon
Guide rod material: Hastelloy® C-276
Float material: Either PTFE or Hastelloy® C-276
Maximum fluid temperature: 212° F (100° C) @ 0 PSI for 1" Pipe and 130° F (54° C) @ 0 PSI for 1-1/2" Pipe

Solormeter® Series Features:


Adapter material: Brass
Union nut material: Glass fiber reinforced nylon
Guide rod material: 316 stainless steel
Float material: Either PTFE or 316 Stainless Steel
Maximum fluid temperature: 240° F (115° C) @ 0 PSI.

Series F-451 has the following options available: 90° adapters, brass adapters and polycarbonate shields. Series F-451 offers the following scale ranges: 0.5 to 40 GPM and 2 to 155 LPM. Series F-451 is not recommended for use in direct sunlight.

Additional Documents:

Accuracy± 3% Full Scale Accuracy
CategoryInstrumentation
Connection MaterialPolysulfone
Connection Size1"
Connection TypeFemale Pipe Thread
Float Material316 Stainless Steel
Flow Rate4.0 to 40 GPM / 15 to 155 LPM
Maximum Psi150 psig @ 70° F
ManufacturerBlue-White Industries
MountIn-Line Mount
OptionsWithout Shield
O-Ring MaterialFKM
SeriesF-451
Size1"
Type of productFlowmeter
