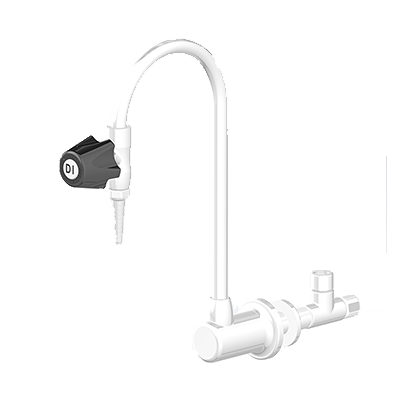

Series LG Gooseneck Recirculating Lab Faucet, Wall Mount, 3/8" Female NPT Inlet, Natural Polypropylene Construction, Virgin PTFE Seal Material, Handle in Front, 100 psi @ 70° F

Item #LG-WDR-F2
  • All virgin PP/PVDF and PTFE wetted fluid path
  • Needle valve activation at point of use - no dead leg
  • Simplified installation of recirculation module
  • Ultra smooth internal flow path
  • FDA, USDA, and USP standards are either met and/or exceeded
  • No metals, lubricants, or elastomers are used
Marquest series LG recirculating laboratory faucets are constructed of PVDF or polypropylene with PTFE seal materials and 3/8" female NPT inlet connections. Recirculation is a feature developed to eliminate any bacterial growth or other biological impurities due to stagnation. The LG series recirculating faucet accomplishes this by allowing continuous motion of the liquid during all phases of operation.

Series LG recirculating laboratory faucets are ideal for the following markets:
  • Universities
  • Hospitals
  • Mining
  • Semiconductor
  • Food & Beverage
  • Life Science & Pharma

Additional Documents:

CategoryValves
Product ColorWhite with black handle
ComplianceARRA Section 1065 "Buy American" / ASME A112.18.1M / FDA / USDA / USP compliant
Connection TypeFemale NPT
MaterialNatural Polypropylene
Maximum Flow Rate (gpm)_0.8 Gallons Per Minute @ 70 psi
ManufacturerMarquest Scientific
MountWall Mount
Pressure Rating150 psi
Seal MaterialVirgin PTFE
Size3/8"
Type of productGooseneck Recirculating Laboratory Faucet
