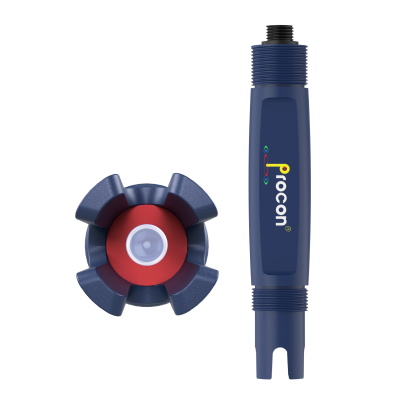

Icon Process Controls P14C-P-M-1-F-M 3/4" ProCon® P14C Series pH Sensor, Polypropylene, MNPT, Solid Nexus® Reference, Blue Glass Flat Electrode, 0 - 14 pH Range, M12, 5 Meter Cable, PT 1000, 2-Wire 4-20mA Output
Item #P14C-P-M-1-F-M
- 4-20mA Output
- IO-Link Connectivity
- Temperature Compensated
- Nexus® Solid KCl Reference
- No Preamp Required
- High Accuracy
- Quick Response Time
- RS-485 Modbus Communication
High performance industrial sensor for harsh applications. The ProCon® P14C Nexus® Series offers the ultimate combination of durability, functionality and long-term performance; exactly what is required for industrys most complex applications. The Nexus® reference eliminates reference poisoning. The sensors are available in flat or bulb style design. The double junction coupled with the solid Nexus® KCl infused reference, and KCl reference sensor electrolyte gel makes the P14C pH sensor transmitter an excellent choice for complex process media applications. All measurement functions are combined in one compact body measuring electrode, temperature sensor, and an inner reference chamber. The (2-wire) 4-20mA, 4-wire and 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers. Applications: Process Control, Water Quality, Sanitization Systems, Neutralization Systems, Effluent Monitoring, Pool & Spa Control, Aquatic Animal Systems, Cooling Towers
