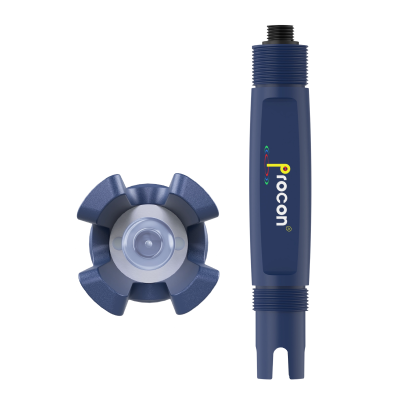

Icon Process Controls P14G-P-D-1-B-M 3/4" ProCon® P14G Series pH Sensor, Polypropylene, MNPT, Blue Glass Bulb Electrode, 0 - 14 pH Range, M12, 5 Meter Cable, PT 1000, Direct 4-Wire Output
Item #P14G-P-D-1-B-M
- 4-20mA Output
- IO-Link Connectivity
- Temperature Compensated
- Double Salt Bridge
- No Preamp Required
- High Accuracy
- Quick Response Time
- RS-485 Modbus Communication
Engineered for accuracy, ruggedness and longevity in general process applications. The robust sensor design of the versatile ProCon® P14G Series confidently offers long-term reliability with fast response times and high accuracy in a wide range of general process applications. These sensors are have been specifically engineered with a double ceramic reference diaphragms that provide highly responsive pH indication. The double salt bridge junction coupled with the PTFE reference technology is the foundation for all P14G series electrodes. The inner reference chamber is charged with potassium chloride (KCl) gel. All measurement functions are combined in one compact body measuring electrode, temperature sensor and an inner reference chamber. The 2-wire 4-20mA, 4-wire or 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers. Applications: Process Control, Water Quality, Sanitization Systems, Neutralization Systems, Effluent Monitoring, Pool & Spa Control, Aquatic Animal Systems, Cooling Towers
Additional Documents:
