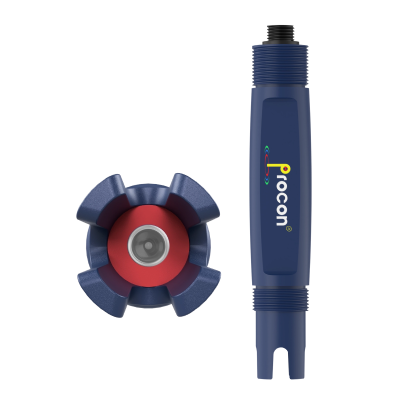

Icon Process Controls P14H-P-M-F-M 3/4" ProCon® P14H Series pH Sensor for HF<1000 ppm, Polypropylene, MNPT, Solid Nexus® Reference, HF Resistant Glass Flat Electrode, 0 - 12 pH Range, M12, 5 Meter Cable, PT 1000, 2-Wire 4-20mA Output
Item #P14H-P-M-F-M
- 4-20mA Output
- IO-Link Connectivity
- Temperature Compensated
- Nexus® Solid KCl Reference
- No Preamp Required
- High Accuracy
- Quick Response Time
- RS-485 Modbus Communication
The ultimate sensor for demanding HF applications (HF < 1000ppm). The ProCon® P14H Nexus® Series pH sensor transmitter offer a Hydrofluoric Acid (HF) chemically resistant glass measuring sensor. The P14H sensor transmitter has been specifically designed to accurately measure HF acid. It incorporates the Nexus® KCl double reference junction eliminating reference poisoning and coating build-up, extending longevity. The enhanced features ensure measure stability and fast response times in very demanding applications where HF is present. All measurement functions are combined in one compact body measuring electrode, temperature sensor, and an inner reference chamber. The Procon® innovative reference design, combined with 2-wire 4-20mA, 4-wire, or 4-20mA + RS485 make these sensors an excellent choice for your industrial HF pH applications. Applications: Process Control, Water Quality, Sanitization Systems, Neutralization Systems, Effluent Monitoring, Pool & Spa Control, Aquatic Animal Systems, Cooling Towers
