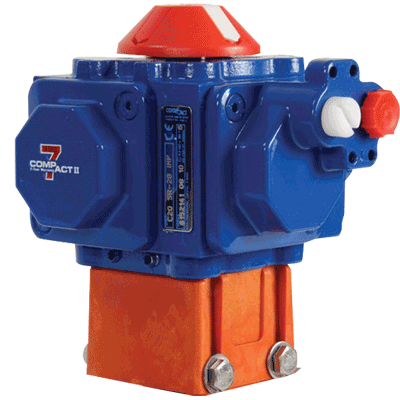

Hayward PCD Series Pneumatic Actuator, Epoxy Coated Aluminum Enclosure for 1/2" - 2" Valve

Item #PCD15
  • Four Piston Rack & PinionDesign
  • Manual Override
  • Position Indicator
  • High Torque Output
  • Permanent Lubrication
  • Adjustable Travel Stops
  • NAMUR Solenoid Mounting
  • ISO 5211 Mounting Base
Hayward PCD pneumatic actuator offers an air-to-air 4-piston rack & pinion design with manual override, position indicator, adjustable travel stops, Namur solenoid mounting and ISO 5211 mounting base.

Type of productPneumatic Actuator
SeriesPCD
ManufacturerHayward Flow Control
Size1/2" - 2"
Maximum Psi120 psi
Minimum Psi80 psi
Airport Size1/4"
Actuator SeriesPCD
Enclosure MaterialEpoxy Coated Aluminum
Shaft MaterialPlated Steel
