Tubing Quick Disconnects

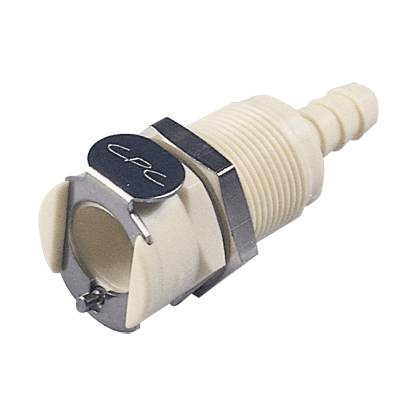

CPC PLCD1600412 1/4" Quick Disconnect PLC12 Series Natural Polypropylene Valved Panel Mount Coupling Body, Female Insert x Hose Barb, EPDM Seal

Item #PLCD1600412
  • Polypropylene material is chemically resistant and gamma sterilizable
  • EPDM O-ring offers greater chemical resistance
  • Thumb latch allows for easy one-handed connection and disconnection
  • Integral terminations mean fewer leak points, shorter assemblies, and faster installations
  • Vacuum rated
PLC12 Series Quick Disconnect Couplings feature a polypropylene material that adds greater chemical resistance for more demanding applications. PLC12 Series couplings are also gamma sterilizable. Polypropylene is resistant to environmental stress cracking and can be exposed to challenging environments.

Product ColorNatural
Connection TypeFemale Insert x Hose Barb
MaterialPolypropylene
ManufacturerCPC
O-Ring MaterialEPDM
SeriesPLC12 Series
Size1/4 in
Spring Material316L Stainless Steel
Type of productValved Panel Mount Coupling Body
