AquaMetrix Shark Multi-Parameter Controller, 120V Nema 4X, 4-20mA, 240 Volt, 50/60 Hz
Item #SHARK-240
- pH, ORP, Conductivity and flow parameters available
- Easy to read 4 digital LED display
- Unique, bright and color-coded bar graph display
- Quick and easy to calibrate
- Relay cycle on/off timers
- Two control relays
- Two 4-20mA outputs with range expandability
- High/low alarm relay
- 1/4 DIN / NEMA 4X enclosure
- Universal mounting hardware provided for surface, panel and pipe mounting
- Compatible with multiple AquaMetrix sensors

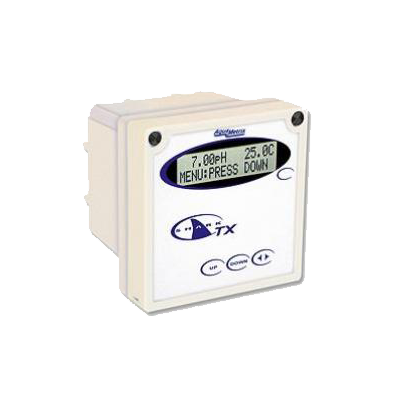

The Shark is designed to be the most flexible, easy to use and easy to see multi-parameter controller on the market. Select the parameter you wish to measure from the easy-to-use LCD menu on the inside front cover. Choose pH, ORP, conductivity or flow. The Shark features a flip out hidden display for setting the parameter. A universal mounting kit is included for surface, panel and pipe-mount applications.
The Shark is an AC powered analyzer that provides two isolated, independent and scalable 4-20mA outputs and two control relays. A third relay is preset to act as an alarm relay, but can be used as a process control relay. It has both high and low adjustable off and on set-points. Both control relays can be set for either a rising or falling process, with easily programmed on/off set-points. Each control relay has a built-in independent cycle timer, with field-set on and off time to reduce chemical overshoot. The Shark is housed in a rugged NEMA 4X polycarbonate enclosure, making it ideally suited for heavy-duty applications.
Shark is ideal for use in the following applications: Process control, industrial and municipal water treatment, industrial and municipal waste treatment and neutralization, fume scrubbers, plating, circuit board manufacturing, food and beverage, chemical processing, pulp & paper, mining, nuclear energy and pharmaceutical industries.
