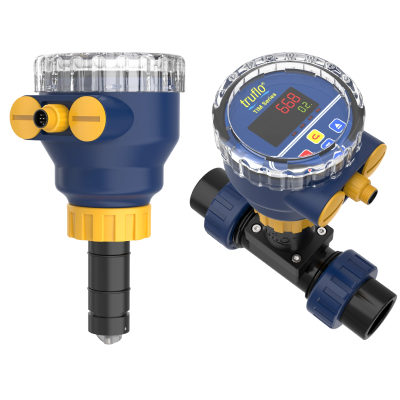

Icon Process Controls TIM-PF-L 6" - 24" Truflo® TIM Series Insertion Style Paddle Wheel Flow Meter, PVDF, Viton® FPM Seals, LED Display, 0.3 - 33 ft/s Range, 4-20mA Output
Item #TIM-PF-L
- Bright LED Display Shows Flow Rate and Total
- Lifetime Warranty on Paddle Assembly
- High Accuracy of +/- 0.5%
- Tefzel® Paddle Wheel has Superior Chemical and Wear Resistance
- Zirconium Ceramic Rotor and Bushings Has up to 15x the Wear Resistance
- Retrofits into Signet® Fittings
- Double O-Ring Seal
- Revolutionary ShearPro® Paddle Wheel Design
The Truflo® TIM Series Digital Paddle Wheel Flow Meter Sensor has been designed for tough industrial applications. The TIM Series paddle wheel flow meter sensor has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insertion flow meter sensor is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a 4-20mA output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industrys most accurate chemical flow meter. Icons paddle wheel flow meter sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIM Series liquid flow meter sensor, is industrys longest lasting plastic flow meter sensor and comes with a lifetime warranty on the paddle wheel assembly. The TIM Series insertion paddle wheel flow meter sensor is available in PVC, PP and PVDF. The flow meter sensors can be installed into pipe sizes 1/2" - 24" using our line of comprehensive custom fittings. Icons complete line of insertion paddle wheel chemical flow meter sensors will also retrofit into any Signet® style fitting. Applications: Liquid Chemical Flow Measurement, Filtration Systems, Water & Wastewater Monitoring, Industrial Chemical Distribution, Process Chemical Skids, Liquid Consumption, Discharge Verification
