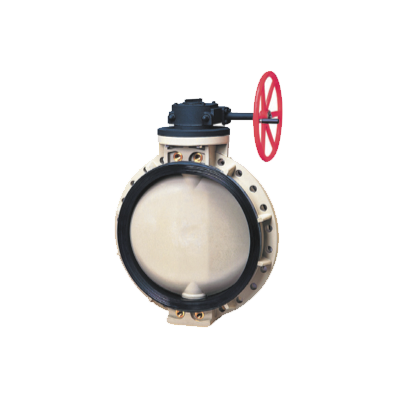

Asahi/America 20" Large Diameter Type 75D Butterfly Valve, PDCPD Body, PP Disc Wafer, FKM Seat/Seals, Gear Operation

Item #3878200
  • High corrosion resistance PDCPD body
  • 16" to 24" sizes available
  • 403 stainless steel shaft has full engagement over the entire length of the disc
  • Seat overtightening protection
  • Disc and seat are the only wetted parts
  • Bubble-tight sealing
  • 110 psi @ 70° F
  • ISO bolt circle on top flange - no body or stem modifications required for accessories
Asahi/America's Type-56D/75D butterfly valves are quarter turn plastic valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both on/off and modulating service. Good tolerance to suspended solids but not recommended for use with slurries or debris. The Type-56D/75D butterfly valve is well suited for a wide variety of fluid flow applications. Can be pneumatically or electrically actuated.

Ideal applications for the Type 56D/75D butterfly valve are:
  • Isolation Valves
  • Control Valves
  • Chemical Processing
  • Water Treatment
  • Water Features
  • Fountains
  • Aquariums
  • Landfills
  • Swimming Pools
  • Power Plants
  • Mining
  • Transportation

Additional Documents:

Body MaterialPDCPD
CategoryValves
ManufacturerAsahi/America
OperatorGear
Seal MaterialFKM
Seat MaterialFKM
SeriesType 75D Large Diameter
Size20"
Stem Material403/316 Stainless Steel
Type of productLarge Diameter Butterfly Valve
Wafer MaterialPolypropylene
