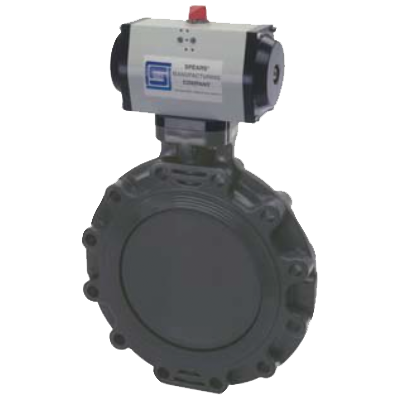

Spears 4" CPVC Butterfly Valve, Pneumatic Actuated with FKM Seals
Item #41302K101-040
- Solid SS316L Stem ANSI Class 150 Bolt Pattern 150 psi @ 73°F (23°C) (Thru 12") 14"-100 psi, 16"- 85 psi, 18"-70 psi, 20"-24"-50 psi 80 psi Operating Pressure, other options available 2-Position Air-Air or Air-Spring Closed (optional spring open) Dual Rack & Pinion with Adjustable Stops Manual Override Position Indicator
Industrial grade valve with patented seat design uses no liner. Eliminates seat-creep and reduces operating torque. Full-featured actuator can be custom configured with add-on accessories.
