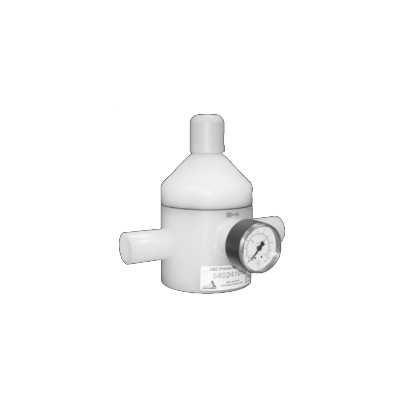

Asahi/America 3" Frank Series V82 Pressure Regulator, IR Butt-Fusion, PP-Pure® Pigmented Polypropylene Body, EPDM Diaphragm, EPDM Seal, W/Gauge Guard

Item #910251030
  • Available in PVDF and PP
  • PTFE or EPDM diaphragm
  • FKM or EPDM seal
  • Process fluid is isolated from mechanical parts
  • Adjustable under working pressure
  • Gauge guard incorporated into design
The popular Frank Series V82 pressure regulator from Asahi/America is a great value with its integrated gauge guard. This pressure regulator reduces pressure and dampens pulsations from pumps and upstream branch line cycling. The piston spring force balances outlet pressure by opening and closing the valve as the inlet pressure changes. Available in PVDF (1/2" - 2-1/2") and PP (1/2" to 4").

Additional Documents:

Body MaterialPigmented Polypropylene
CategoryValves/Accessories
Diaphragm MaterialEPDM
Connection TypeButt Fusion
ManufacturerAsahi/America
OptionsW/Gauge Guard
Pressure Rating14 to 90 psi
Seal MaterialEPDM
SeriesV82
Size3"
Type of productPressure Regulator
