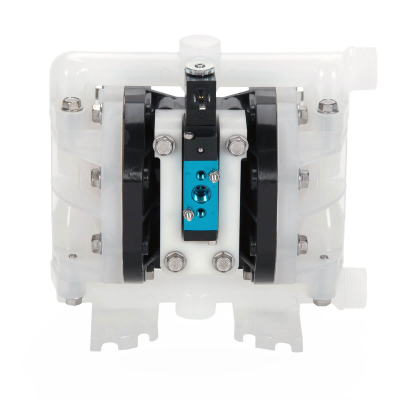

All-Flo A025-SPP-TTPT-S78 Bolted Air-Operated Double-Diaphragm Pump, 1/4 inch NPT, Polypropylene body, PTFE Diaphragm with Solenoid Adaptor Valve 24 VDC

Item #A025-SPP-TTPT-S78
  • Max Flow = 5.7 gpm
  • Max Suction Lift = 28 ft-H20 Wet
  • Max Suction Lift = 14 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/16"
  • Porting Location: Suction Right / Discharge Right
  • Stainless Steel Hardware, Standard Muffler
  • Air valve only contains 3 moving parts making it the worlds simplist air valve
  • Contains a Solenoid Adaptor Valve 24 Volt DC, DIN 43650B Connector
The All-Flo A025-SPP-TTPT-S78 Is a 1/4 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Polypropylene housing, a Polypropylene air section and PTFE diaphragms. the port locations are Suction Right / Discharge Right and Configurated with a Solenoid Adaptor Valve 24 Volt DC, DIN 43650B Connector

Additional Documents:

Air Suction MaterialPolypropylene
Ball MaterialPTFE
CertificationCE, ATEX (IF Grounded properly)
Connection TypeNPT (BSP Compatible)
Diaphragm MaterialPTFE
Maximum Flow Rate (gpm)_5.7 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialPTFE
Port Size1/4 in
Quantity1
Seat MaterialPolypropylene
SeriesA025
Type of productDouble Diaphragm Pump
Wetted MaterialPolypropylene
Suction Port LocationRight Side
Discharge Port LocationRight Side
Max Suction Lift (Wet)28 ft-H2O
Max Suction Lift (Dry)14 ft-H2O
Max Diameter Solids1/16 in
