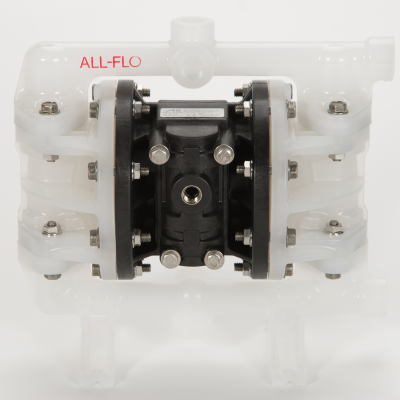

All-Flo A050-SPP-TTPT-S70 Bolted Air-Operated Double-Diaphragm Pump, 1/2 inch NPT, Polypropylene body, PTFE Diaphragm Standard Configuration

Item #A050-SPP-TTPT-S70
  • Max Flow = 17 gpm
  • Max Suction Lift = 26 ft-H20 Wet
  • Max Suction Lift = 15 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/8"
  • Porting Location: Suction Right / Discharge Right
  • Stainless Steel Hardware, Standard Muffler
  • Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo A050-SPP-TTPT-S70 Is a 1/2 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Polypropylene housing, a Polypropylene air section and PTFE diaphragms. the port locations are Suction Right / Discharge Right and it has a Standard Configuration

Additional Documents:

Air Suction MaterialPolypropylene
Ball MaterialPTFE
CertificationCE, ATEX (IF Grounded properly)
Connection TypeNPT (BSP Compatible)
Diaphragm MaterialPTFE
Maximum Flow Rate (gpm)_17 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialPTFE
Port Size1/2 in
Quantity1
Seat MaterialPolypropylene
SeriesA050
Type of productDouble Diaphragm Pump
Wetted MaterialPolypropylene
Suction Port LocationRight Side
Discharge Port LocationRight Side
Max Suction Lift (Wet)26 ft-H2O
Max Suction Lift (Dry)15 ft-H2O
Max Diameter Solids1/8 in
