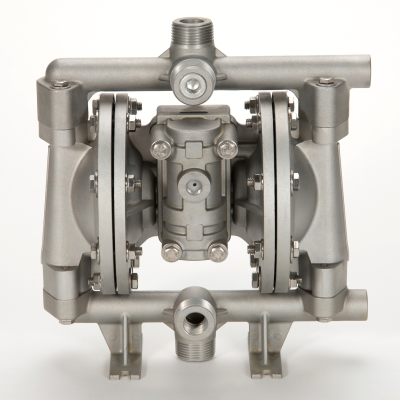

All-Flo A075-NAA-VVYV-A30 Bolted Air-Operated Double-Diaphragm Pump, 3/4 inch NPT, Aluminum body, FKM Diaphragm Standard Configuration

Item #A075-NAA-VVYV-A30
  • Max Flow = 15 gpm
  • Max Suction Lift = 31 ft-H20 Wet
  • Max Suction Lift = 15 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/8"
  • Porting Location: Suction Center Front / Discharge Center Front
  • Zinc Plated Steel Hardware, Plastic Muffler
  • Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo A075-NAA-VVYV-A30 Is a 3/4 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Aluminum housing, a Aluminum air section and FKM diaphragms. the port locations are Suction Center Front / Discharge Center Front and it has a Standard Configuration

Additional Documents:

Air Suction MaterialAluminum
Ball MaterialFKM
CertificationCE, ATEX (IF Grounded properly)
Connection TypeNPT
Diaphragm MaterialFKM
Maximum Flow Rate (gpm)_15 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialFKM
Port Size3/4 in
Quantity1
Seat MaterialNylon
SeriesA075
Type of productDouble Diaphragm Pump
Wetted MaterialAluminum
Suction Port LocationCenter Front
Discharge Port LocationCenter Front
Max Suction Lift (Wet)31 ft-H2O
Max Suction Lift (Dry)15 ft-H2O
Max Diameter Solids1/8 in
