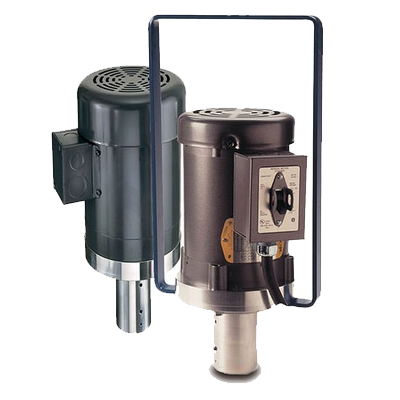

Finish Thompson Totally Enclosed Fan Cooled Motor (TEFC) for Drum Pump, 0.75kW Output, Three Phase, 60 Hz, 230/460 Volt, 3450 RPM, 3.6/1.8 FLA, 800 cP Maximum Viscosity

Item #A100892
  • For use with series BT drum pumps
  • 3450 RPM
  • TEFC
  • 800 cP maximum viscosity
  • 3.6/1.8 Full load ampere rating
Finish Thompson model M15 drum pump motors are compatible with the following Finish Thompson series drum pumps: BT. Model M15 totally enclosed fan cooled (TEFC) motor has an output of 0.75 kilo watts, 60 Hz, 230/460 Volts, three phase, 3.6/1.8 full load ampere rating (FLA), 3,450 RPM and a maximum viscosity of 800 cP.

Additional Documents:

CategoryDrum Pumps
Full Load Ampere Rating3.6/1.8 FLA
Maximum Viscosity800 cP
ManufacturerFinish Thompson
Motor Hertz60 Hz
Motor ModelM15
Motor PhaseThree Phase
Type of MotorTEFC
Motor Voltage230/460 Volt
RPM3450 RPM
SeriesFor use with pump series BT
Type of productMotor
Wattage0.75 kW Output
