Drum & Barrel Pumps

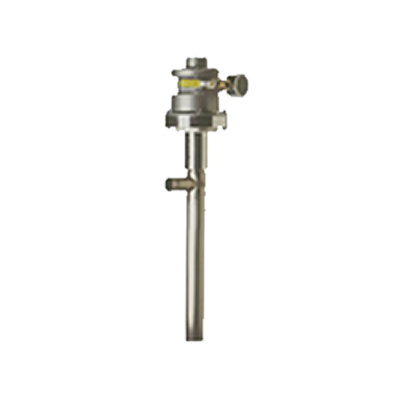

Series BT Drum Pump, 2.00" 316 Stainless Steel Tube, 1-1/2" Hose Barb Discharge, 316 Stainless Steel Shaft, 40" Tube Length, 1.8 Maximum Specific Gravity

Item #DBTS037
  • Stainless steel shaft/tube construction
  • Tube interchangeable with motors
  • Up to 15,000 cP with 3 hp motor
Finish Thompson BT series drum pumps are ideal for handling liquids with higher viscosities. This model has a PTFE screw-type lifting compressor with stainless steel shaft and tube. The pump length is 40" (102 cm) with 1-1/2" hose barb discharge and 2" tube. BT series can handle viscous material up to 15,000 cP and offers a maximum operating temperature of 200°F. BT series drum pumps can be paired with several different motor types including TEFC (totally enclosed fan cooled), explosion proof and air motors.

BT series pumps are for use in the following applications:

  • Oils
  • Resins
  • Solvents
  • Adhesives
  • Polymers
  • Gear lube
  • Glycerin

Additional Documents:

CategoryDrum Pumps
Connection TypeHose Barb
Maximum Flow Rate (gpm)_Electric 10 gpm / Air 10 gpm
Maximum Feet of Head200' Electric / 200' Air
Maximum Media Operating Temperature- 20 °F to 200 °F
Maximum Viscosity15000 cP Electric/Air
ManufacturerFinish Thompson
ModelBTS-40
Outlet Size1-1/2"
Type of OutletDischarge
SeriesSeries BT
Shaft Material316 Stainless Steel
Secific Gravity1.8 Maximum
Tube Length40"
Tube Material316 Stainless Steel
Tubing Size2.00"
Type of productDrum Pump
