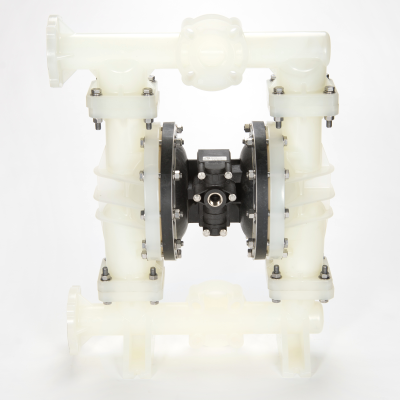

All-Flo A200-FPK-SSKE-S70 Bolted Air-Operated Double-Diaphragm Pump, 2 inch ANSI/DIN Flange, PVDF body, Santoprene® Diaphragm Standard Configuration

Item #A200-FPK-SSKE-S70
  • Max Flow = 160 gpm
  • Max Suction Lift = 29 ft-H20 Wet
  • Max Suction Lift = 17 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/4"
  • Porting Location: Suction Right / Discharge Right
  • Stainless Steel Hardware, Standard Muffler
  • Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo A200-FPK-SSKE-S70 Is a 2 inch, Bolted air operated diaphragm pump. The pump is manufactured from a PVDF housing, a Polypropylene air section and Santoprene® diaphragms. the port locations are Suction Right / Discharge Right and it has a Standard Configuration

Additional Documents:

Air Suction MaterialPolypropylene
Ball MaterialSantoprene®
CertificationCE, ATEX (IF Grounded properly)
Connection TypeANSI/DIN Flange
Diaphragm MaterialSantoprene®
Maximum Flow Rate (gpm)_160 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialEPDM
Port Size2 in
Quantity1
Seat MaterialPVDF
SeriesA200
Type of productDouble Diaphragm Pump
Wetted MaterialPVDF
Suction Port LocationRight Side
Discharge Port LocationRight Side
Max Suction Lift (Wet)29 ft-H2O
Max Suction Lift (Dry)17 ft-H2O
Max Diameter Solids1/4 in
