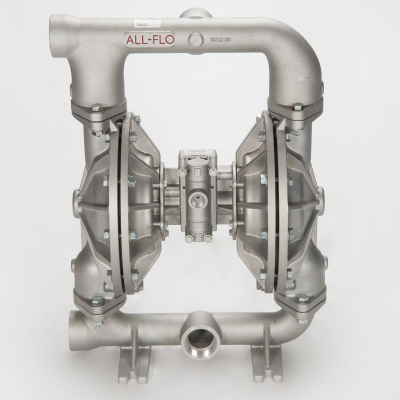

All-Flo A200-NAA-SSAE-B30 Bolted Air-Operated Double-Diaphragm Pump, 2 inch NPT, Aluminum body, Santoprene® Diaphragm Standard Configuration

Item #A200-NAA-SSAE-B30
  • Max Flow = 190 gpm
  • Max Suction Lift = 31.7 ft-H20 Wet
  • Max Suction Lift = 24.4 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/4"
  • Porting Location: Suction Center Front / Discharge Center Rear
  • Zinc Plated Steel Hardware, Plastic Muffler
  • Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo A200-NAA-SSAE-B30 Is a 2 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Aluminum housing, a Aluminum air section and Santoprene® diaphragms. the port locations are Suction Center Front / Discharge Center Rear and it has a Standard Configuration

Additional Documents:

Air Suction MaterialAluminum
Ball MaterialSantoprene®
CertificationCE, ATEX (IF Grounded properly)
Connection TypeNPT
Diaphragm MaterialSantoprene®
Maximum Flow Rate (gpm)_190 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialEPDM
Port Size2 in
Quantity1
Seat MaterialAluminum
SeriesA200
Type of productDouble Diaphragm Pump
Wetted MaterialAluminum
Suction Port LocationCenter Front
Discharge Port LocationCenter Rear
Max Suction Lift (Wet)31.7 ft-H2O
Max Suction Lift (Dry)24.4 ft-H2O
Max Diameter Solids1/4 in
