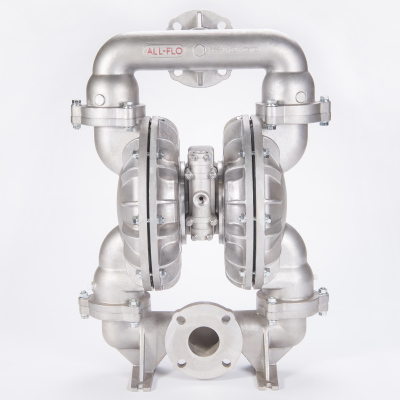

All-Flo A300-FA3-VV3V-B70 Bolted Air-Operated Double-Diaphragm Pump, 3 inch ANSI/DIN Flange, Stainless Steel body, FKM Diaphragm Standard Configuration

Item #A300-FA3-VV3V-B70
  • Max Flow = 235 gpm
  • Max Suction Lift = 31 ft-H20 Wet
  • Max Suction Lift = 20 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 7/16"
  • Porting Location: Suction Center Front / Discharge Center Rear
  • Stainless Steel Hardware, Standard Muffler
  • Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo A300-FA3-VV3V-B70 Is a 3 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Stainless Steel housing, a Aluminum air section and FKM diaphragms. the port locations are Suction Center Front / Discharge Center Rear and it has a Standard Configuration

Additional Documents:

Air Suction MaterialAluminum
Ball MaterialFKM
CertificationCE, ATEX (IF Grounded properly)
Connection TypeANSI/DIN Flange
Diaphragm MaterialFKM
Maximum Flow Rate (gpm)_235 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialFKM
Port Size3 in
Quantity1
Seat MaterialStainless Steel
SeriesA300
Type of productDouble Diaphragm Pump
Wetted MaterialStainless Steel
Suction Port LocationCenter Front
Discharge Port LocationCenter Rear
Max Suction Lift (Wet)31 ft-H2O
Max Suction Lift (Dry)20 ft-H2O
Max Diameter Solids7/16 in
