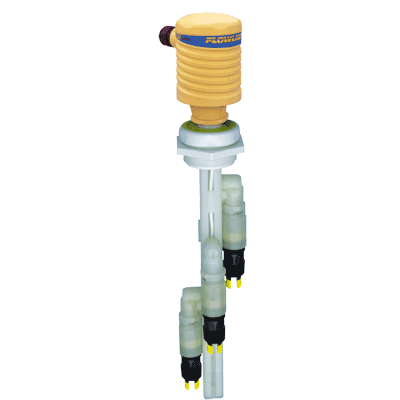

Smart Trak with Junction BoxVibration, 60 VA, 4 SPST relays
Item #AZ48-4343
- Four sensing technologies for complete application coverage
- Extension available in custom lengths from 6"-10'
- Fail-safe controller provides direct actuation of pumps, valves and alarms
- All plastic with polypropylene or PVDF wetted materials
- Polypropylene enclosure rated NEMA 4X with ½" conduit connector
- LED indicators for liquid, relay and power status
- Adjustable 0-60 second time delay dampens out relay chatter
- Invert switch provides simple normally open or normally closed relay operation
- 2" NPT
The general purpose level switch package provides reliable, multi-point liquid level detection up to 10' (3m) with 1-4 adjustable level switch points and a compact junction box for integral wiring termination. Available in three level sensor technologies, select the sensor type based upon your application media. This PP liquid level switch package is widely applied in process, sump and day tank level applications for automatic filling or emptying with high level alarm and/or low level alarm.
