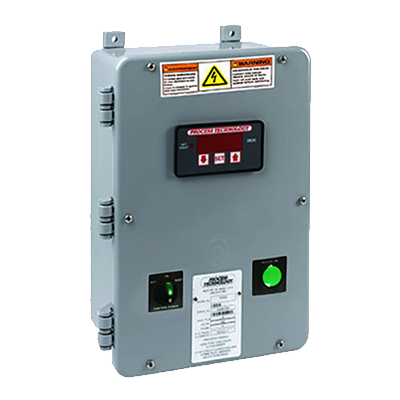

Process Technology Series DE Digital Combination Control, 1 or 3 Phase, LED Display, 480 Volts, 40 AMP, 10' 1000ohm RTD Fluoropolymer Covered Sensor, P2 Thermal Protector (2) Circuitry

Item #C-DE404-P2
  • Large switching capacities from 20 to 150 amps for up to 600 Volts
  • Adjustable temperature range from ( 58° F (- 40° C) to 999° F (538° C)
  • ± 0.25% full span, single digit accuracy
  • 20° F (- 7° C) to 140° F(60° C) ambient temperature range
  • Single or three phase
  • Control transformer included
  • 0.56" LED display
  • Pre-wired P1 terminal blocks
  • Programmable high alarm shutdown
  • Sensor short and break protection
  • UL listed
Process Technology DE series digital combination controls feature a 0.56" high easy-to-read LED display. Each controller comes standard with an FEP covered 10' thermistor which provides extended service in corrosive liquids and can be lengthened with ordinary copper wire. The corrosion resistant enclosure is Nema1, IP21 rated, flame retardant with stainless steel hardware. DE series also comes standard with 3 pole contactor, transformer and thermostat.

Safety features for series DE include:
  • Pre-wired P1 terminal blocks
  • Non-volatile memory
  • Programmable high alarm shutdown
  • Sensor short and break protection
  • Programmable high set point limit
  • Security code restricted menu

Additional Documents:

per: EA
Call for Availability
Accuracy± .25% full span/single
Ambient Temperature20°F to 140°F
Amperage40
CategoryInstrumentation
CertificationcULus
DisplayLED
Enclosure MaterialPlastic with SS hardware
Enclosure RatingNEMA 1 IP21 Flame Retardant
ManufacturerProcess Technology
OptionsP2 Thermal Protection
Sensor Option10' Fluoropolymer covered 1000-ohm platinum RTD sensor
SeriesC-DE Series
Type of productTemperature Control
Voltage480
