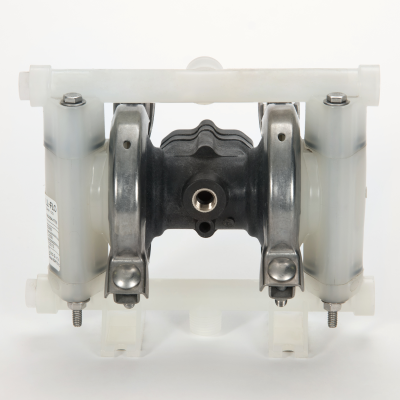

All-Flo C038-SQK-TVKV-S70 Clamped Air-Operated Double-Diaphragm Pump, 3/8 inch NPT, PVDF body, FKM Diaphragm Standard Configuration

Item #C038-SQK-TVKV-S70
  • Max Flow = 9 gpm
  • Max Suction Lift = 26 ft-H20 Wet
  • Max Suction Lift = 10 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 3/8"
  • Porting Location: Suction Right / Discharge Right
  • Stainless Steel Hardware, Standard Muffler
  • Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo C038-SQK-TVKV-S70 Is a 3/8 inch, Clamped air operated diaphragm pump. The pump is manufactured from a PVDF housing, a Polypropylene air section and PTFE diaphragms. the port locations are Suction Right / Discharge Right and it has a Standard Configuration

Additional Documents:

Air Suction MaterialPolypropylene
Ball MaterialFKM
CertificationCE, ATEX (IF Grounded properly)
Connection TypeNPT (BSP Compatible)
Diaphragm MaterialPTFE
Maximum Flow Rate (gpm)_9 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialFKM
Port Size3/8 in
Quantity1
Seat MaterialPVDF
SeriesC038
Type of productDouble Diaphragm Pump
Wetted MaterialPVDF
Suction Port LocationRight Side
Discharge Port LocationRight Side
Max Suction Lift (Wet)26 ft-H2O
Max Suction Lift (Dry)10 ft-H2O
Max Diameter Solids3/8 in
