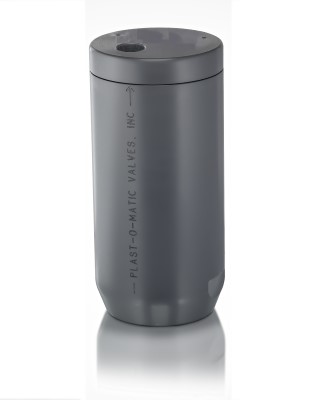

Plast-O-Matic DGV050V-PV DGV Series 1/2 IN Degassing Valve Automatic Vent, FNPT, PVC Body, FKM Seal, 1/8 IN Port

Item #DGV050V-PV
  • Placed at the high point of a piping system, this patented valve will vent gas as it occurs.
  • A unique float/actuating lever allows the vent orifice to open when gas is present
  • After gas vents, rising liquid forces the vent to close
  • Whenever gas accumulates, the valve will re-open until the gas is vented
  • Designed for systems that continuously generate trace amounts of gasses
Series DGV United States Patent #7,481,238 B2. Unique float design opens as air or gas collects in the valve, closes when liquid returns, allowing continuous expulsion of trace amounts of gas as it occurs. 1/2" tee connection for virtually any pipe size; offered in a variety of corrosion resistant and ultrapure plastic materials.

Additional Documents:

Connection TypeFNPT
MaterialPVC
Port Size1/8 IN
Seal MaterialFKM
SeriesDGV
Size1/2 in
Type of productDegassing Valve
ManufacturerPlast-O-Matic
VentAutomatic
