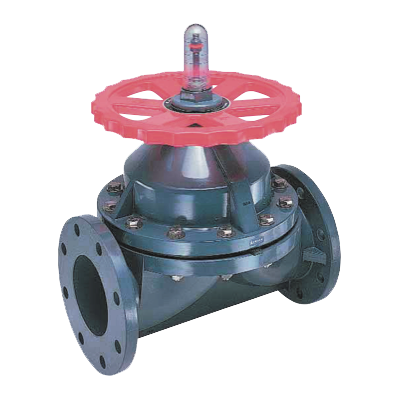

IPEX Series DV 3" Manual Diaphragm Valve, Flange Connection, PVC Body, EPDM Diaphragm, EPDM Seal
Item #DVOV109
- Manual handwheel operation
- Flanged ANSI 150 end connections
- PVC body material
- 1/2" through 6" sizes
- EPDM or PTFE Diaphragm
- Up to 150 psi at 73° F
- Molded flanged body eliminates potential joint leaks
- Precise flow control
- High cycle life
- Excellent for abrasive slurries
IEPX's DV series diaphragm valves are rugged industrial products ideal for throttling or use in abrasive slurry lines. The raising position indicator also functions as an adjustable travel stop. This feature can be used to avoid over-compression of the diaphragm, or as a travel limiter allowing different settings for the "closed" position. The molded flanged body eliminates potentially leaky joints while featuring end-to-end dimensions identical to most plastic lined metal diaphragm valves, allowing for direct replacement.
DV series valves are widely used in high purity applications because their design prevents friction and subsequent particle creation when cycling.
