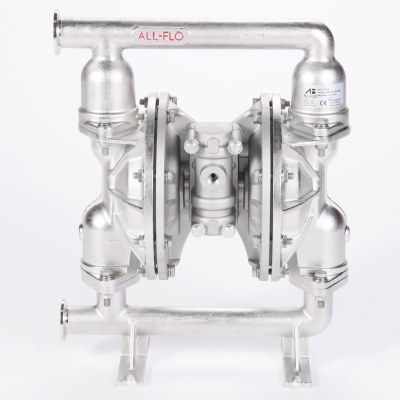

All-Flo F100-TAE-TT3T-S70 All-Pur™ FDA Air-Operated Double-Diaphragm Pump, 1-1/2 inch Tri-Clamp, Passivated 316 Stainless Steel body, PTFE Diaphragm Standard Configuration

Item #F100-TAE-TT3T-S70
  • Max Flow = 48 gpm
  • Max Suction Lift = 30 ft-H20 Wet
  • Max Suction Lift = 17 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/4"
  • Porting Location: Suction Right / Discharge Right
  • Stainless Steel Hardware, Standard Muffler
  • Worlds Simplist Air Valve
The All-Flo F100-TAE-TT3T-S70 Is a 1-1/2 inch, All-Pur™? FDA air operated diaphragm pump. The pump is manufactured from a Passivated 316 Stainless Steel housing, a Aluminum air section and PTFE diaphragms. the port locations are Suction Right / Discharge Right and it has a Standard Configuration

Additional Documents:

Air Suction MaterialAluminum
Ball MaterialPTFE
CertificationFDA, CE, ATEX (IF Grounded properly)
Connection TypeTri-Clamp
Diaphragm MaterialPTFE
Maximum Flow Rate (gpm)_48 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialPTFE
Port Size1 in
Quantity1
Seat MaterialStainless Steel
SeriesF100
Type of productDouble Diaphragm Pump
Wetted MaterialPassivated 316 Stainless Steel
Suction Port LocationRight Side
Discharge Port LocationRight Side
Max Suction Lift (Wet)30 ft-H2O
Max Suction Lift (Dry)17 ft-H2O
Max Diameter Solids1/4 in
