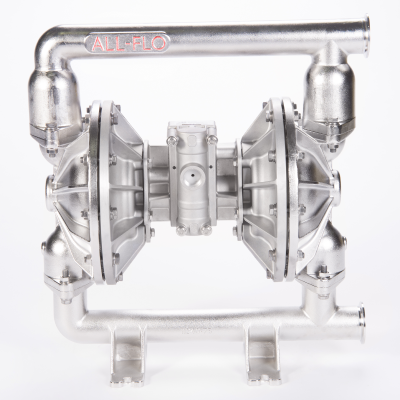

All-Flo F150-T3E-4S3M-S70 All-Pur™ FDA Air-Operated Double-Diaphragm Pump, 2 inch Tri-Clamp, Passivated 316 Stainless Steel body, Santoprene® Diaphragm Standard Configuration

Item #F150-T3E-4S3M-S70
  • Max Flow = 115 gpm
  • Max Suction Lift = 31 ft-H20 Wet
  • Max Suction Lift = 22 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/4"
  • Porting Location: Suction Right / Discharge Right
  • Stainless Steel Hardware, Standard Muffler
  • Worlds Simplist Air Valve
The All-Flo F150-T3E-4S3M-S70 Is a 2 inch, All-Pur™? FDA air operated diaphragm pump. The pump is manufactured from a Passivated 316 Stainless Steel housing, a Stainless Steel air section and FDA Santoprene® diaphragms. the port locations are Suction Right / Discharge Right and it has a Standard Configuration

Additional Documents:

Air Suction MaterialStainless Steel
Ball MaterialSantoprene®
CertificationFDA, CE, ATEX (IF Grounded properly)
Connection TypeTri-Clamp
Diaphragm MaterialFDA Santoprene®
Maximum Flow Rate (gpm)_115 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialFDA EPDM
Port Size1-1/2 in
Quantity1
Seat MaterialStainless Steel
SeriesF150
Type of productDouble Diaphragm Pump
Wetted MaterialPassivated 316 Stainless Steel
Suction Port LocationRight Side
Discharge Port LocationRight Side
Max Suction Lift (Wet)31 ft-H2O
Max Suction Lift (Dry)22 ft-H2O
Max Diameter Solids1/4 in
