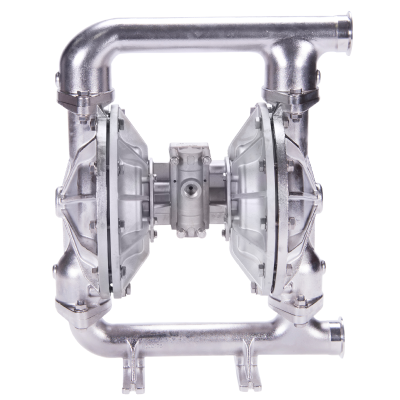

All-Flo F200-TAE-HB3B-S70 All-Pur™ FDA Air-Operated Double-Diaphragm Pump, 2-1/2 inch Tri-Clamp, Passivated 316 Stainless Steel body, Buna-N (FDA) Diaphragm Standard Configuration

Item #F200-TAE-HB3B-S70
  • Max Flow = 190 gpm
  • Max Suction Lift = 31.7 ft-H20 Wet
  • Max Suction Lift = 24.4 ft-H20 Dry
  • Max Pressure 120 psi
  • Max Diameter Solids = 1/4"
  • Porting Location: Suction Right / Discharge Right
  • Stainless Steel Hardware, Standard Muffler
  • Worlds Simplist Air Valve
The All-Flo F200-TAE-HB3B-S70 Is a 2-1/2 inch, All-Pur™? FDA air operated diaphragm pump. The pump is manufactured from a Passivated 316 Stainless Steel housing, a Aluminum air section and Hytrel® (FDA) diaphragms. the port locations are Suction Right / Discharge Right and it has a Standard Configuration

Additional Documents:

Air Suction MaterialAluminum
Ball MaterialBuna-N (FDA)
CertificationFDA, CE, ATEX (IF Grounded properly)
Connection TypeTri-Clamp
Diaphragm MaterialHytrel® (FDA)
Maximum Flow Rate (gpm)_190 GPM
Maximum Psi120 psi
ManufacturerAll-Flo
O-Ring MaterialFDA Buna-N
Port Size2 in
Quantity1
Seat MaterialStainless Steel
SeriesF200
Type of productDouble Diaphragm Pump
Wetted MaterialPassivated 316 Stainless Steel
Suction Port LocationRight Side
Discharge Port LocationRight Side
Max Suction Lift (Wet)31.7 ft-H2O
Max Suction Lift (Dry)24.4 ft-H2O
Max Diameter Solids1/4 in
