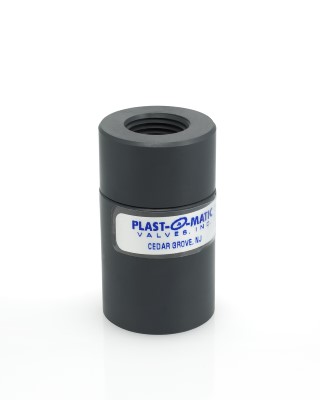

Plast-O-Matic FC050EP-002-000-PV FC Series 1/2 IN Constant Flow Control Valve FNPT, PVC Body, EPDM Seal, 2 GPM

Item #FC050EP-002-000-PV
  • Maintain constant flow with inlet pressure fluctuation from 15 to 120 PSI (1 Bar to 8 Bars) with +/-15% accuracy. Test equipment is NIST certified.
  • For corrosive and ultra-pure liquid applications.
  • Standard flow ranges from 1/4 GPM to 8 GPM; 9 to 120 GPM by special order.
  • No metals in contact with the liquid.
  • Automatic in operation - no adjustments.
Series FC Maintain constant flow to 15% accuracy with inlet pressure changes from 15 to 120 PSI (1 bar to 8 bar). Valves are pre-set with NIST certified test equipment.Series FC is tamper-proof.

Additional Documents:

Connection TypeFNPT
Gallons Per Minute2 GPM
MaterialPVC
Seal MaterialEPDM
SeriesFC
Size1/2 in
Type of productFlow Control Valve
ManufacturerPlast-O-Matic
