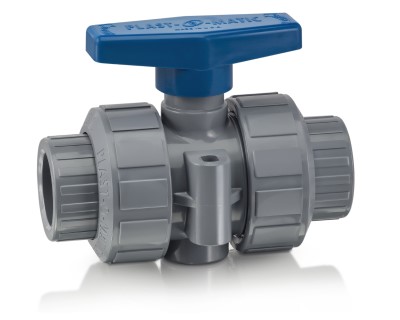

Plast-O-Matic MBV63EPS-PP MBV Series 63 MM Manual Ball Valve True Union Socket, Polypropylene Body, EPDM Seal, PTFE Seat
Item #MBV63EPS-PP
- Heavy-duty, large diameter shaft to eliminate flexing and breakage; Dual shaft seals eliminate leakage
- PTFE bearing on shaft eliminates friction and wear; stem design is "blow-out" proof
- PTFE seats energized with O-rings eliminate wear and improve cycle life.
- Trunnion design eliminates lateral ball stress and allow downstream piping to be disconnected under full line pressure.
- Known as "The Engineered Ball Valve", Series MBV provides more safety and design features than any other thermoplastic ball valve.
3/8" -4" sizes in PVC, CPVC, Natural Polypro, PVDF with FKM or EPDM. 3/8" -2" feature trunnion design, dual sliding seats. 3" and 4" sizes are single direction safe-block design. Available with NPT, Socket, BSP, Sanitary, Spigot and other connection types. 1/2" through 2" 2-way valves available in UV-blocking Red Kynar.
Additional Documents:
