IPolymer 1/4" Metering Valve, Female NPT Connection, 1/4" Orifice, PTFE Construction, Straight Flow Pattern
Item #MV-44P-A
- PTFE construction for media wetted surfaces
- Tapered plug-stem for fine adjustment to flow
- Full, open orpositive shutoff positions
- Ideal for Di water and harshchemical media
- Media operating pressure = 25 in HG to 60psi maximum
- Media operating temperature = - 22° Fmin / 230° F max

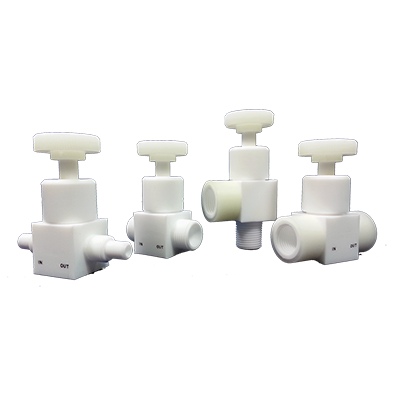

IPolymer metering valve uses a tapered plug-stem to give a fine adjustment to the flow in addition to afully open or fully closed shutoff position. The PTFE all-wetted surface design works equally well with ultra clean DI water and harsh chemical media. As with all metering valves, filtering the media prior to entering the value is recommended. These metering valves come in two configurations: Straight flow patter ("A") and Angled flow pattern ("B").
