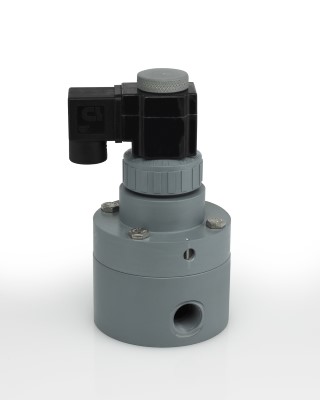

Plast-O-Matic PS200VW11-120/60-PV PS Series 2 IN Solenoid Valve FNPT, PVC Body, FKM Seal, PTFE Bellows
Item #PS200VW11-120/60-PV
- Normally closed, in-line design with bubble-tight shut-off
- Pilot requires minimum 5 PSI differential to operate
- Particularly for applications where high backpressures (up to 70 PSI) are required e.g. controlling flow spray nozzles, high pressure chemical injections, etc. Inlet pressure to 140 PSI
- PTFE Bellows barrier-type dynamic seal prevents leaking of fugitive emissions to the atmosphere
- Molded coil and standard DIN connector; designed to meet NEMA 4X
Series PS requires 5 psi greater pressure at inlet to function properly. Uses line pressure to assist operation,which allows extremely high Cv performance,as well as outstanding pressure ratings. Pilot valve features PTFE bellows. Sizes from 1/2" to 3" in a wide range of materials and connection types.
Additional Documents:
