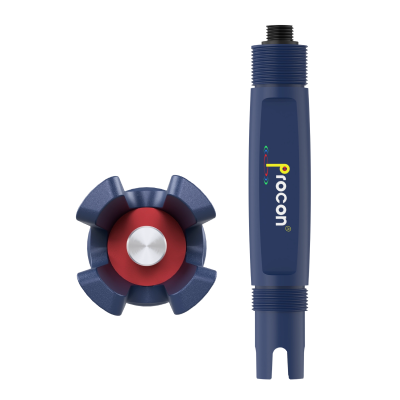

Icon Process Controls R7G-P-M-1-F-M 3/4" ProCon® R7G Series ORP Sensor, Polypropylene, MNPT, Platinum Flat Electrode, M12, 5 Meter Cable, PT 1000, 2-Wire 4-20mA Output
Item #R7G-P-M-1-F-M
- 4-20mA Output
- IO-Link Connectivity
- Temperature Compensated
- Nexus® Solid KCl Reference
- No Preamp Required
- High Accuracy
- Quick Response Time
- RS-485 Modbus Communication
High-Performance industrial ORP sensor transmitters for general applications. The ProCon® R7G Nexus® Series has been engineered for ruggedness, longevity, and accuracy and features a platinum electrode for enhanced accuracy. The double junction coupled with the solid Nexus® KCl infused reference makes the R7G ORP sensor transmitter the perfect choice for general process media applications. All measurement functions are combined in one compact body measuring electrode, temperature sensor, and an inner reference measuring electrode chamber. The 2-wire 4-20mA, 4-wire, or 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers. Applications: Process Control, Water Quality, Sanitization Systems, Neutralization Systems, Effluent Monitoring, Pool & Spa Control, Aquatic Animal Systems, Cooling Towers
