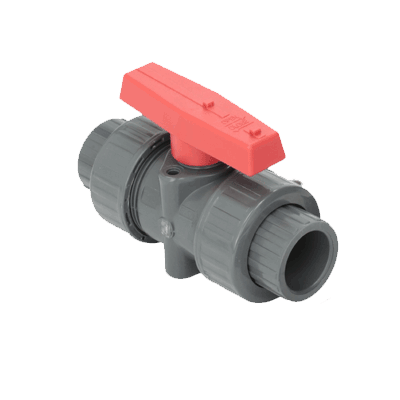

1/2" Hayward Series TBB Commercial True Union Ball Valve, Socket & Threaded End Connections, PVC Body, EPDM O-Rings, PTFE Seats, 225 psi @ 70 °F

Item #TBB1005CPEG
  • PVC, CPVC, PP and PVDF
  • Full port design
  • Easy maintenance
  • FPM or EPDM seals
  • Double O-ring stem seals
  • Easy to service
  • Automation available
  • Adjustable seat retainer
Hayward Series TBB commercial true union ball valves are offered in PVC, CPVC, PP and PVDF in sizes 1/2" to 4". The 1/2" to 2" sizes have socket and threaded or flanged end connections while the 2-1/2" to 4" sizes are either threaded or flanged. PVC, CPVC and PP valves come with either FPM or EPDM O-rings. PVDF valves are only offered with FPM O-rings. Seats for all materials and sizes are PTFE.

TBB series valves are ideal for the following applications:

  • General Service
  • Commercial Plumbing
  • Irrigation
  • Swimming pools & water parks
  • Aquariums

Additional Documents:

per: EA
Not Available
Ball TypeStandard
CategoryTrue Union Ball Valve
Product ColorGray Body/Red Handle
Connection TypeSocket/Thread
ManufacturerHayward Flow Control
OperatorHandle
O-Ring MaterialEPDM
Pressure Rating225 psi @ 70 °F
Seat MaterialPTFE
SeriesTBB Series
Size1/2"
Type of productTrue Union Ball Valve
Ball MaterialPVC
Body MaterialPVC
