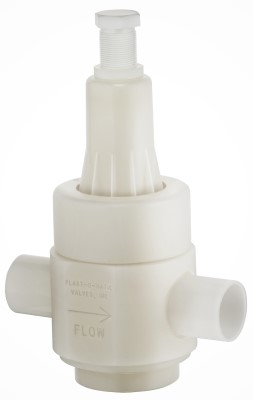

Plast-O-Matic UPR20TSP-PF UPR Series 20 MM Ultra-Pure Pressure Regulator Spigot, PVDF Body, PTFE Seal, For ASAHI
Item #UPR20TSP-PF
- Elastomer-free non-shutoff design features no metal components other than a non-wetted, PVDF coated spring
- PVDF butt-fusion for Asahi or GF high purity piping systems. Flare and other types available; consult factory
- Proprietary Plast-O-Matic pre-assembly cleaning procedure + 8 hour cold/8 hour hot DI rinse
- Final Class 100 clean and double bag procedure
- Downstream pressure settings adjustable from 5 to 100 PSI.
Series UPR Downstream pressure reducing valve features non-shutoff elastomer-free design (pressure will equalize in a no-flow condition) and the ultimate purity levels, as verified by independent test labs. BCF spigots, flare, sanitary, and other connection types available. 1/4" - 2" or 20 - 63mm sizes; choice of Kynar 740 or PTFE body. High purity CDB-16 (8 hour hot / 8 hour cold DI rinse) procedure is standard; clean and double bag in class 100 (ISO 5) clean room. Ultimate purity with excellent flow performance; set pressure range 5-100 PSI.
