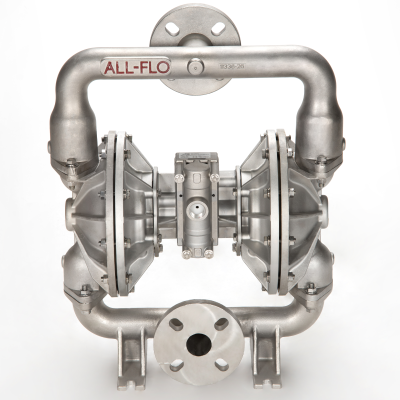

All-Flo A150-F33-TT3T-B70 Bolted Air-Operated Double-Diaphragm Pump, 1-1/2 inch ANSI/DIN Flange, Stainless Steel body, PTFE Diaphragm Standard Configuration
Item #A150-F33-TT3T-B70
- Max Flow = 115 gpm
- Max Suction Lift = 31 ft-H20 Wet
- Max Suction Lift = 22 ft-H20 Dry
- Max Pressure 120 psi
- Max Diameter Solids = 1/4"
- Porting Location: Suction Center Front / Discharge Center Rear
- Stainless Steel Hardware, Standard Muffler
- Air valve only contains 3 moving parts making it the worlds simplist air valve
The All-Flo A150-F33-TT3T-B70 Is a 1-1/2 inch, Bolted air operated diaphragm pump. The pump is manufactured from a Stainless Steel housing, a Stainless Steel air section and PTFE diaphragms. the port locations are Suction Center Front / Discharge Center Rear and it has a Standard Configuration
