Tank Heaters

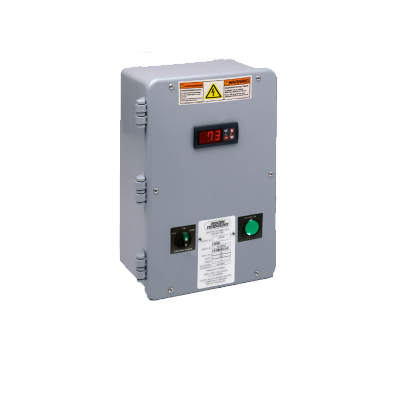

Process Technology Series DLC Digital Combination Control, 1/2" LED Display, 240 volts, 20 Amps, 10' FEP sleeve

Item #C-DLC202
  • Large switching capacities from 20 to 150 amps for up to 600 Volts
  • Adjustable temperature range from - 58° F (- 50° C) to 302° F (150° C)
  • ± 1% full span, single digit accuracy
  • 14° F (- 10° C) to 158° F(70° C) ambient temperature range
  • Single or three phase
  • Control transformer included
  • 1/2" LED display
  • Pre-wired P1 terminal blocks
  • Programmable high alarm shutdown
  • Sensor short and break protection
  • UL listed
Process Technology DLC series digital combination controls feature a 1/2" high easy-to-read LED display. Each controller comes standard with an FEP covered 10' thermistor which provides extended service in corrosive liquids and can be lengthened with ordinary copper wire. The corrosion resistant enclosure is Nema1, IP21 rated, flame retardant with stainless steel hardware. DLC series also comes standard with 3 pole contactor, transformer and thermostat.

Safety features for series DLC include:
  • Pre-wired P1 terminal blocks
  • Non-volatile memory
  • Programmable high alarm shutdown
  • Sensor short and break protection
  • Programmable high set point limit
  • Security code restricted menu

Additional Documents:

Accuracy± 1% full span single digit accuracy
Cable Length10' FEP sleeve
CategoryPipe Accessories/Tools
ComplianceUL Listed
Display1/2" LED Display
Enclosure MaterialPlastic with SS hardware
Enclosure RatingNEMA 1 / IP21
ManufacturerProcess Technology
SeriesDLC Series
Type of productDigital Combination Controls
Type of Power20 Amps
Voltage240 Volts
Weight16 lbs shipping weight
