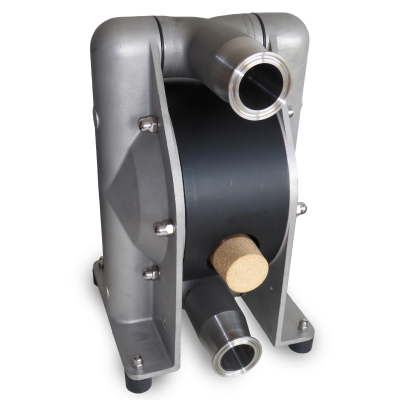

All-Flo G200-TJ3-PTXT-GFN All-Pur™ Food Grade Air-Operated Double-Diaphragm Pump, 2 inch Tri-Clamp, Stainless Steel body, PTFE Diaphragm Manual Drain Ball-Lifters

Item #G200-TJ3-PTXT-GFN
  • Max Flow = 106 gpm
  • Max Suction Lift = 29.5 ft-H20 Wet
  • Max Suction Lift = 9.8 ft-H20 Dry
  • Max Pressure 100 psi
  • Max Diameter Solids = 9/16"
  • Porting Location: Suction Center Rear / Discharge Center Rear
  • Stainless Steel Hardware, Standard Muffler, Grounding Lug Installed
  • Contains a Manual Drain Ball-Lifters
The All-Flo G200-TJ3-PTXT-GFN Is a 2 inch, All-Pur™ Food Grade air operated diaphragm pump. The pump is manufactured from a Stainless Steel housing, a Conductive Polyethylene air section and Integral PTFE diaphragms. the port locations are Suction Center Rear / Discharge Center Rear and Manual Drain Ball-Lifters

Additional Documents:

Air Suction MaterialConductive Polyethylene
Ball MaterialPTFE
CertificationFDA, CE, ATEX (IF Grounded properly)
Connection TypeTri-Clamp
Diaphragm MaterialIntegral PTFE
Maximum Flow Rate (gpm)_106 GPM
Maximum Psi100 psi
ManufacturerAll-Flo
O-Ring MaterialPTFE
Port Size2 in
Quantity1
Seat MaterialStainless Steel
SeriesG200
Type of productDouble Diaphragm Pump
Wetted MaterialStainless Steel
Suction Port LocationCenter Rear
Discharge Port LocationCenter Rear
Max Suction Lift (Wet)29.5 ft-H2O
Max Suction Lift (Dry)9.8 ft-H2O
Max Diameter Solids9/16 in
